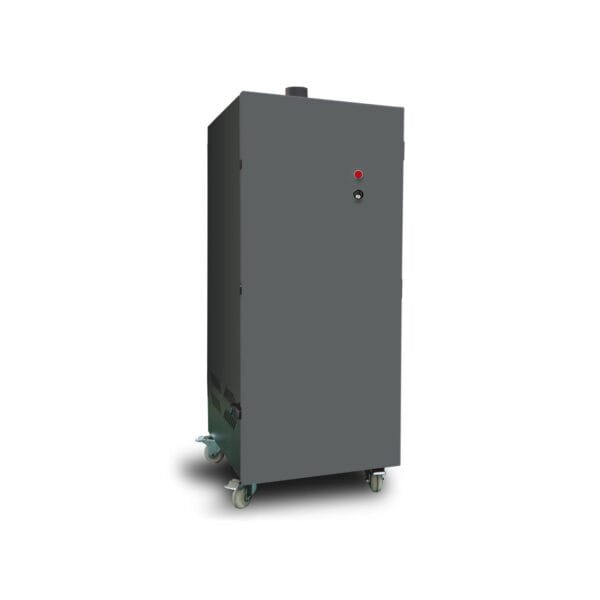

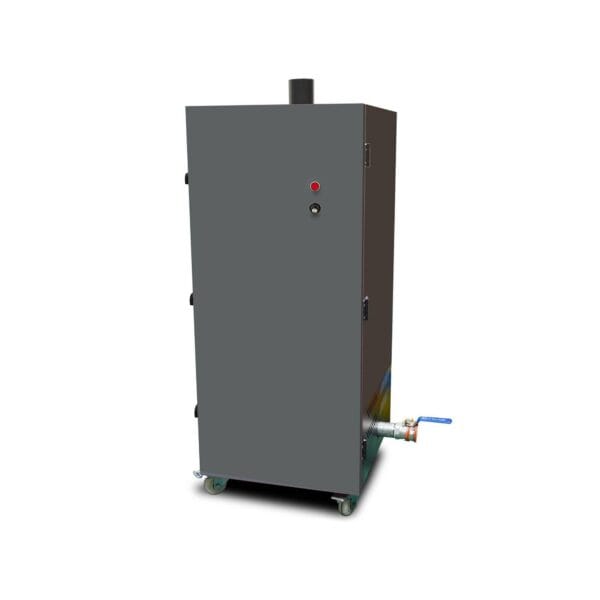

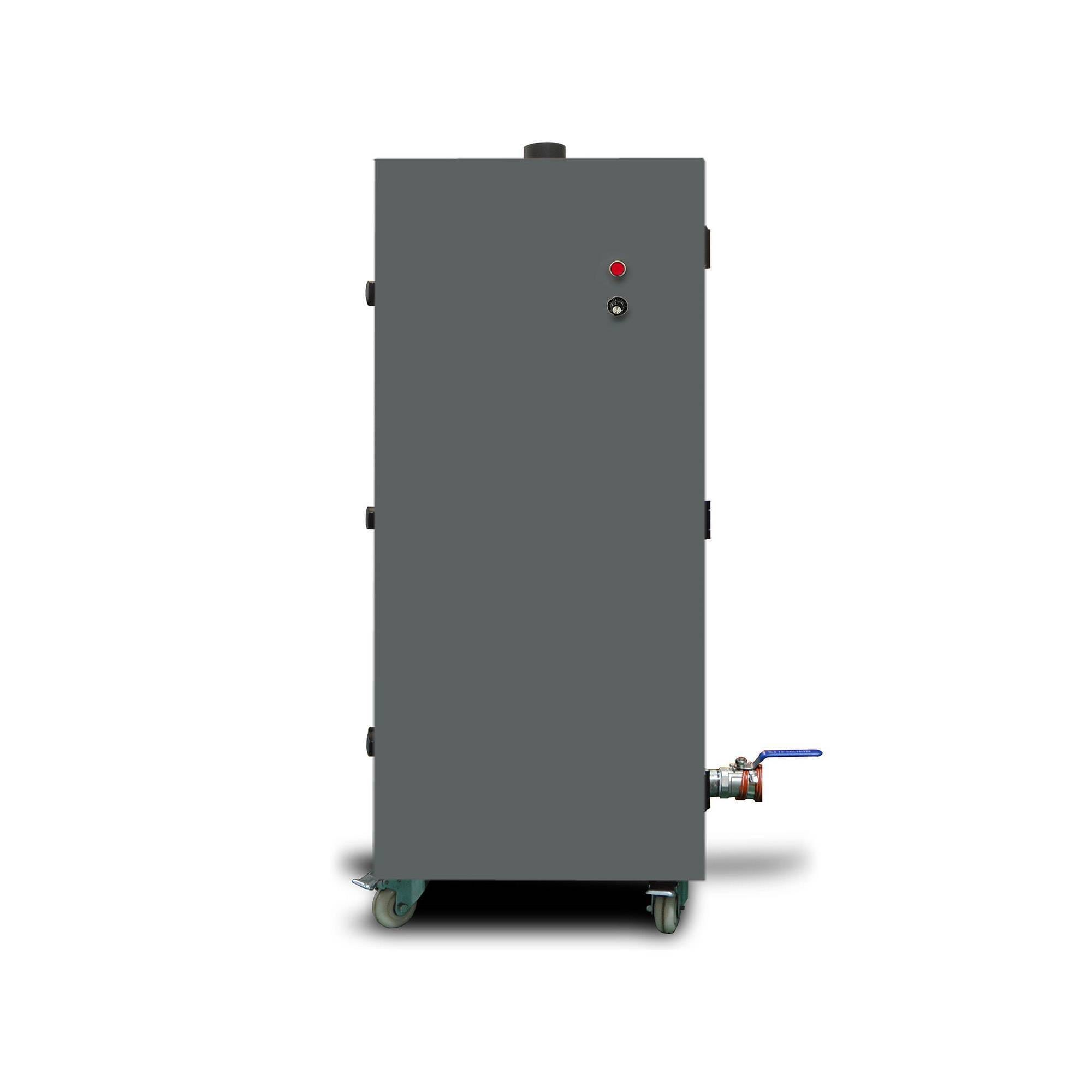

Discover unparalleled air quality with the DTF 250W Industrial Filtration/Fume Extractor. Engineered for efficiency, this powerful extractor is ideal for maintaining a clean, safe workspace. With its robust 250W motor, it effortlessly removes harmful particles and fumes, ensuring a healthier environment. Compact and reliable, it’s a must-have for industrial settings.
DTF JS100 smoke lampblack filter is designed for the machine need smoke discharge like dtf shaker or sublimation color system. It can be matched with various powder shakers and sublimation color fixing machines to complete the extraction and filtration of oil fume.Effectively eliminate and filter the oil fume in the drying process, improve the quality of processed products, and provide a clean and smoke-free working environment.
Step into a world of superior air quality with the DTF 250W Industrial Filtration/Fume Extractor. Designed for demanding industrial environments, this state-of-the-art extractor combines power with precision to tackle even the toughest air quality challenges.
Key Features:
Applications: Ideal for workshops, factories, and areas where air quality is a concern, this extractor is versatile and essential for welding, manufacturing, and woodworking operations.
Safety and Compliance: Prioritizing your safety, the DTF 250W meets rigorous industry standards and regulations, ensuring peace of mind in every use.
| Rated Voltage | AC 110V ± 5% |
| Rated Current | 2.5A |
| Rated Power | 250W |
| Energy consumption | 150~250W |
| Max air amount | 250m³/h |
| Noise | ≤ 65db |
| Machine Size | 20.9in x 22.5in x 53.8in (530mm x 571mm x 1366mm) |
| Machine Weight | 198lbs (90kg) |
| Package Size | 26.8in x 24.8in x 60.6in (680mm x 630mm x 1540mm) |
| Gross Weight | 264lbs (120kg) |
| Warranty | 1 year |
• 1 x Fume Extractor
• 2 x Extraction pipes
• 1 x Activated carbon filter (Installed in the machine)
• 1 x Power cord
• 1 x Filter element (Installed in the machine)
• 1 set screws
• 1 x User manual
Note: In order to achieve better smoke removal effect, it is recommended that the activated carbon be replaced every 3months and the filter element be replaced every 6 months. Drain the oil at the drain port once every 3 days.
High effect filter: This smoke extractor continuously pulls in your dtf powder shaker’s fumes and oil, running them progressively through its filter element and inner activated carbon filters to absorb all harmful gases and unpleasant odors.
Highly mobile: The 4 quality caster wheels move this small but dependable smoke purifier easily between your devices when needed and then lock smartly in place once you’re ready to go.
Independent design: Open it you can use it.
Adopts the full-scale design, inner oil gas, smoke room are large, have good filter effect.
Can satisfy DTF powder shaker or sublimation color system’s filter requirement.
Invest in the DTF 250W Industrial Filtration/Fume Extractor for a cleaner, safer, and more efficient workspace. It’s not just an extractor; it’s your partner in maintaining a pristine industrial environment.
| Size | 13in x 100m, 24in x 100m |
|---|
